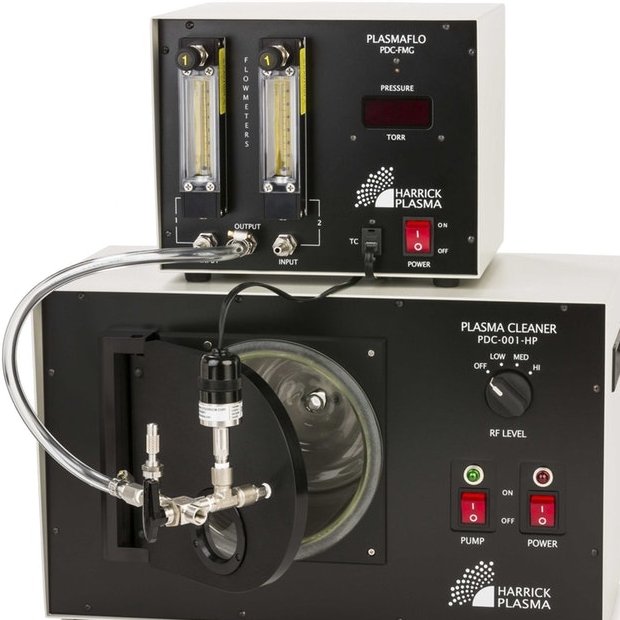

Harrick Plasma HIGH POWER EXPANDED PLASMA CLEANER
Applications: NANOSCALE CLEANING
: DEVICE FABRICATION, SURFACE PATTERNING
Larger, benchtop unit
Adjustable RF power settings (Low, Medium, High)
Maximum RF power of 45W
Low RF power setting is equivalent to High RF power setting on PDC-001/PDC-002
Includes a 6″ diameter x 6.5″ length Pyrex chamber
Hinged door with viewing window
Active fan cooling
Integral switch for a vacuum pump
1/8″ NPT metering valve to qualitatively control gas flow and vacuum pressure
1/8″ NPT 3-way valve to quickly switch from bleeding in gas, isolating the chamber, and venting
Weight: 37 lbs
Size: 11″ H x 18″ W x 9″ D
Adjustable RF power settings (Low, Medium, High)
Maximum RF power of 45W
Low RF power setting is equivalent to High RF power setting on PDC-001/PDC-002
Includes a 6″ diameter x 6.5″ length Pyrex chamber
Hinged door with viewing window
Active fan cooling
Integral switch for a vacuum pump
1/8″ NPT metering valve to qualitatively control gas flow and vacuum pressure
1/8″ NPT 3-way valve to quickly switch from bleeding in gas, isolating the chamber, and venting
Weight: 37 lbs
Size: 11″ H x 18″ W x 9″ D
Optional PlasmaFlo gas mixer allows quantitative control of up to two (2) process gases and monitoring of chamber pressure
Optional quartz chamber and sample tray
Compatible vacuum pump available
